Kawasaki Vulcan 800 - Dash Plaque - Raw Brass

For anyone looking to give their Kawasaki Vulcan 800 a little finesse, we got you!

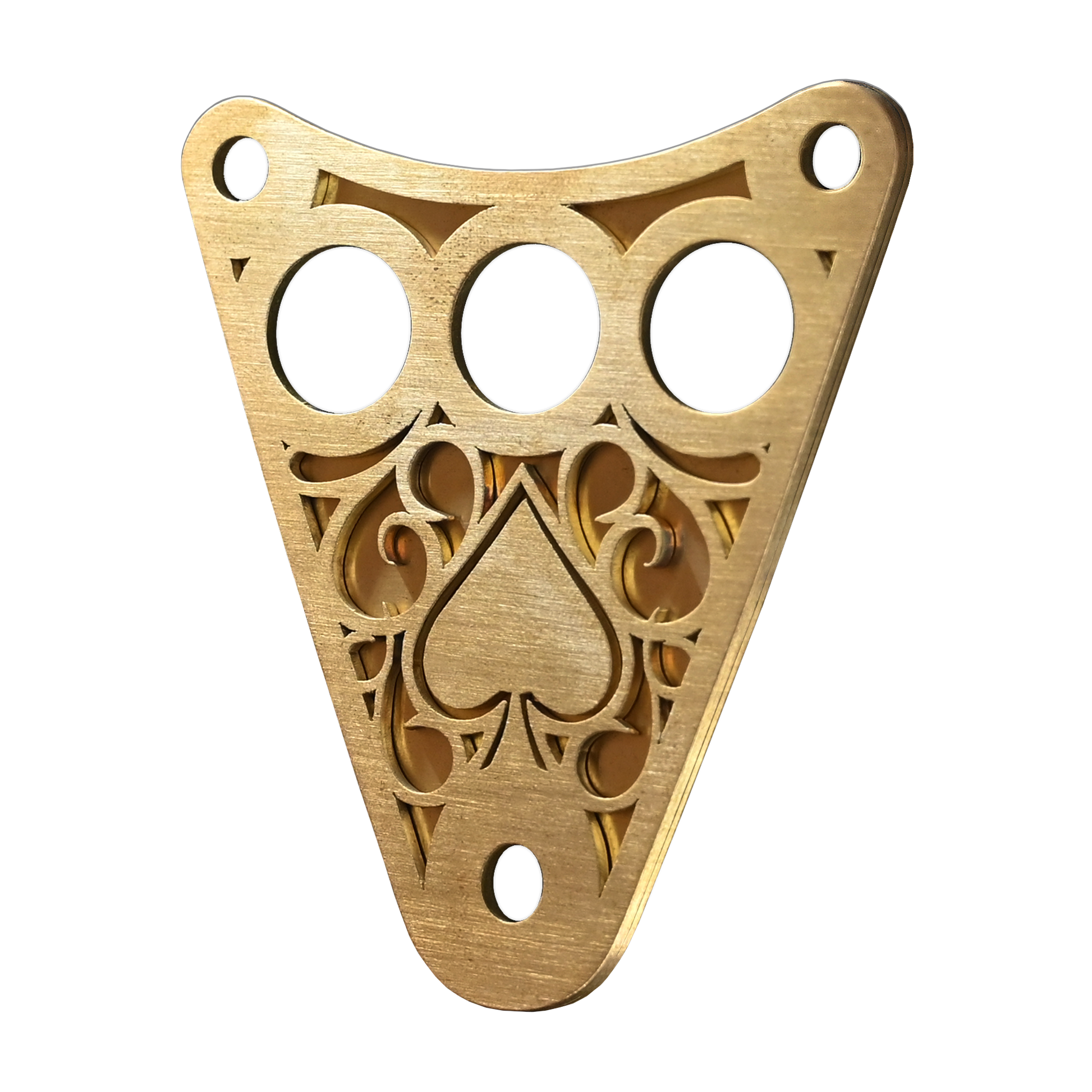

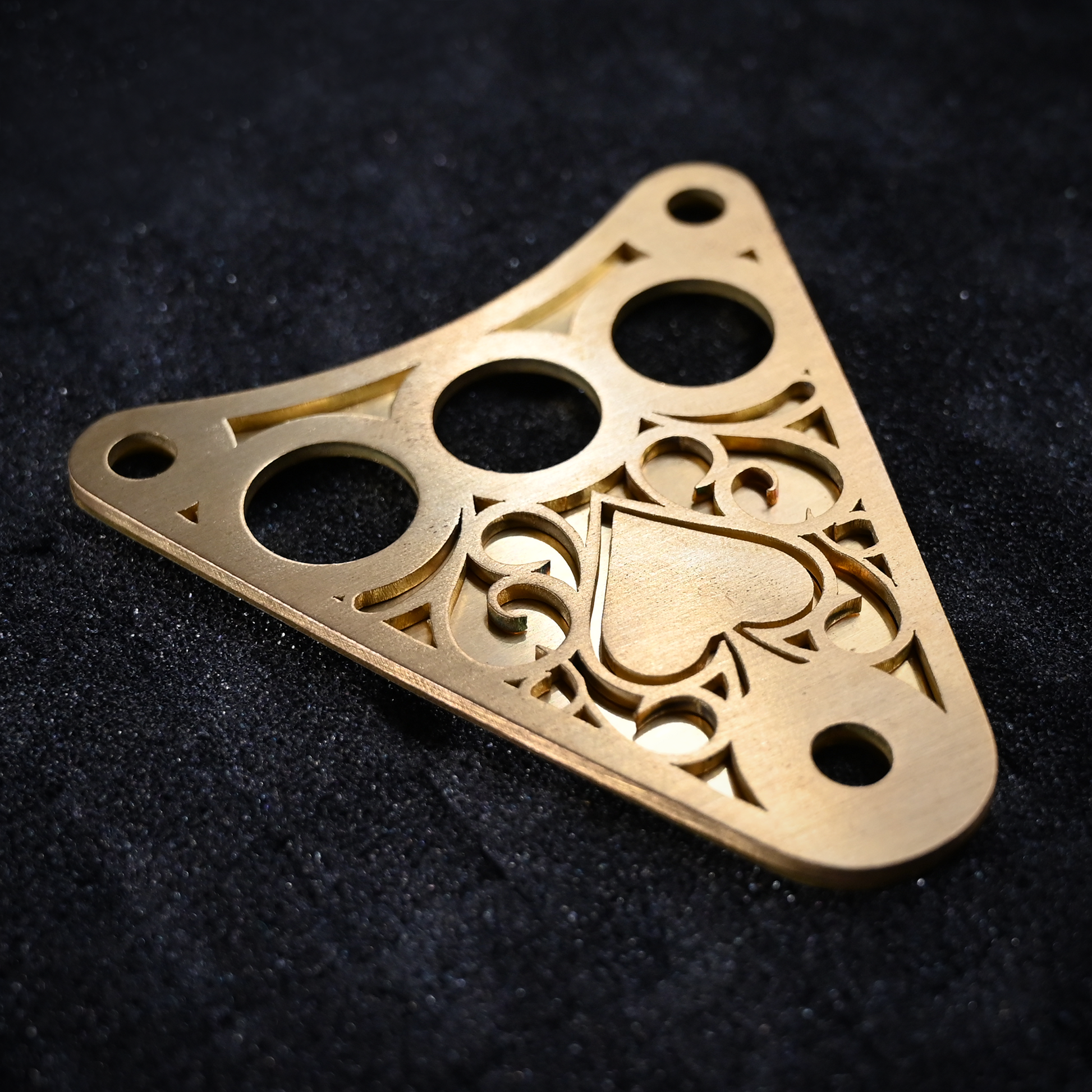

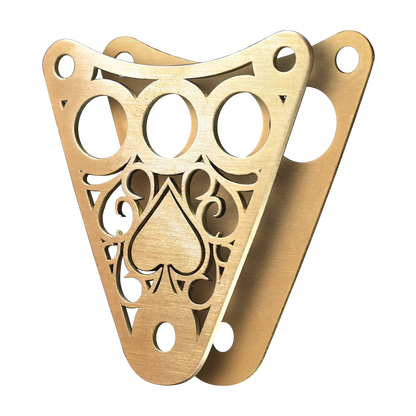

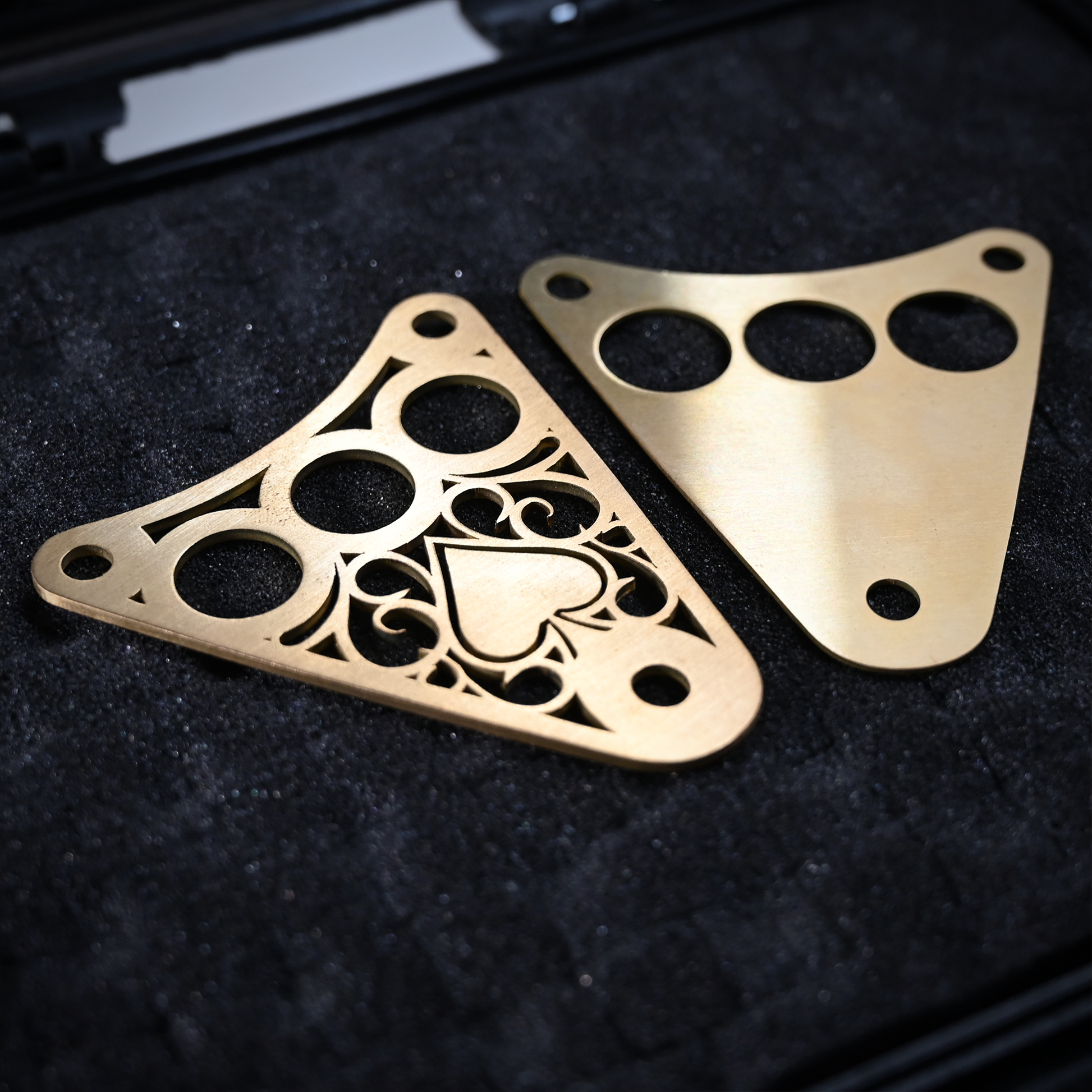

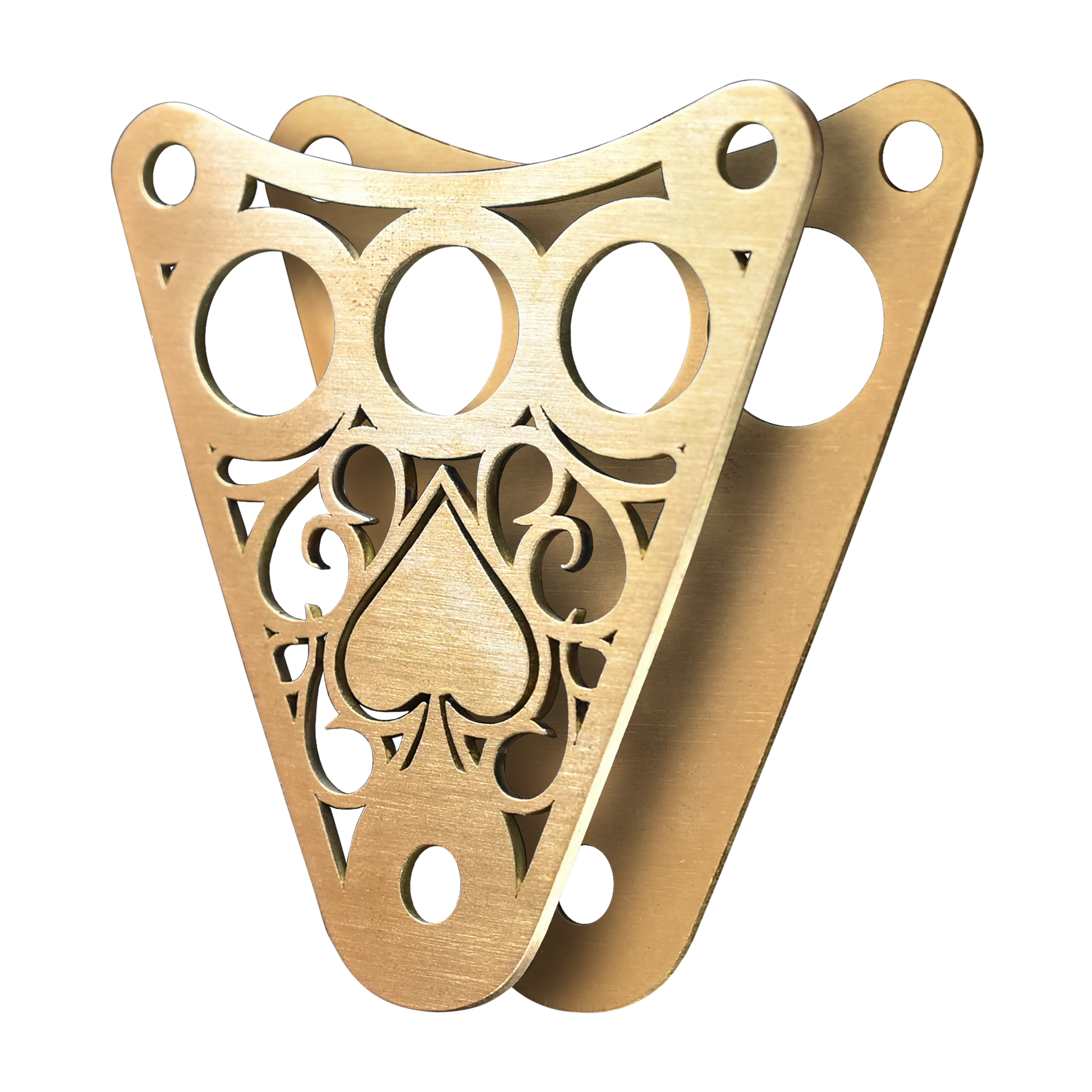

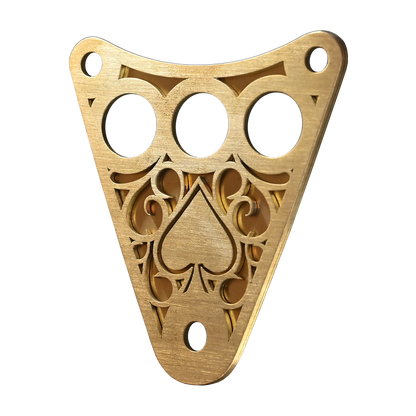

Gemstone Motorcycle Parts Kawasaki Vulcan 800 Dash Plaque comes in two pieces. The top piece is a design plaque with a laser cut ornamental pattern. Second piece is a bottom back plaque. Not only does this give the installed unit a nice three dimensional look but this also allows you to paint the dash plaque in separate colours to match your bikes colour scheme.

Please read below information related to this specific product before buying.

Kawasaki Vulcan 800 - Dash Plaque - Raw Brass Description

• Made out of laser cut brass
• Easy installation
• Total thickness of the assembled product: 3 mm (Original dash plaque is 2 mm)
• Indication lamp holes diameter top plaque: 16.5 mm
• Indication lamp holes diameter bottom plaque: 19 mm
• Total width: 79.15 mm
• Total height: 88.3 mm

Finish
Raw brass. No treatment after production.
This means minor oxidation may occur (which happens as a natural result of brass reacting with oxygen in the air) . In other words, it will get some beautiful patina.

The patina on the product can however be easily removed with some light polishing.

Installation guide

1. Remove the three screws holding the dash plaque in place
2. Lift up the dash plaque
3. Use your nail or a small, flat, screwdriver to carefully “pop-off” the faces from the indication lights rubber shelling
4. Squeeze the rubber shelling with the lights and push them out
5. Install the new dash plaque by threading the lamps with their rubber shelling through the back plaque first, then follow the steps above in reverse with the top plaque

Fitment
All Kawasaki Vulcan 800.

This product has been test fitted on several Kawasaki Vulcan 800 with no issues, but if in doubt, please refer to the dimension information under the description.

Possible fitment
Not tested but it looks like the Kawasaki Vulcan 500 is using the same type of dash plaque. No guarantee that it will fit. Please refer to the dimension information under description.
